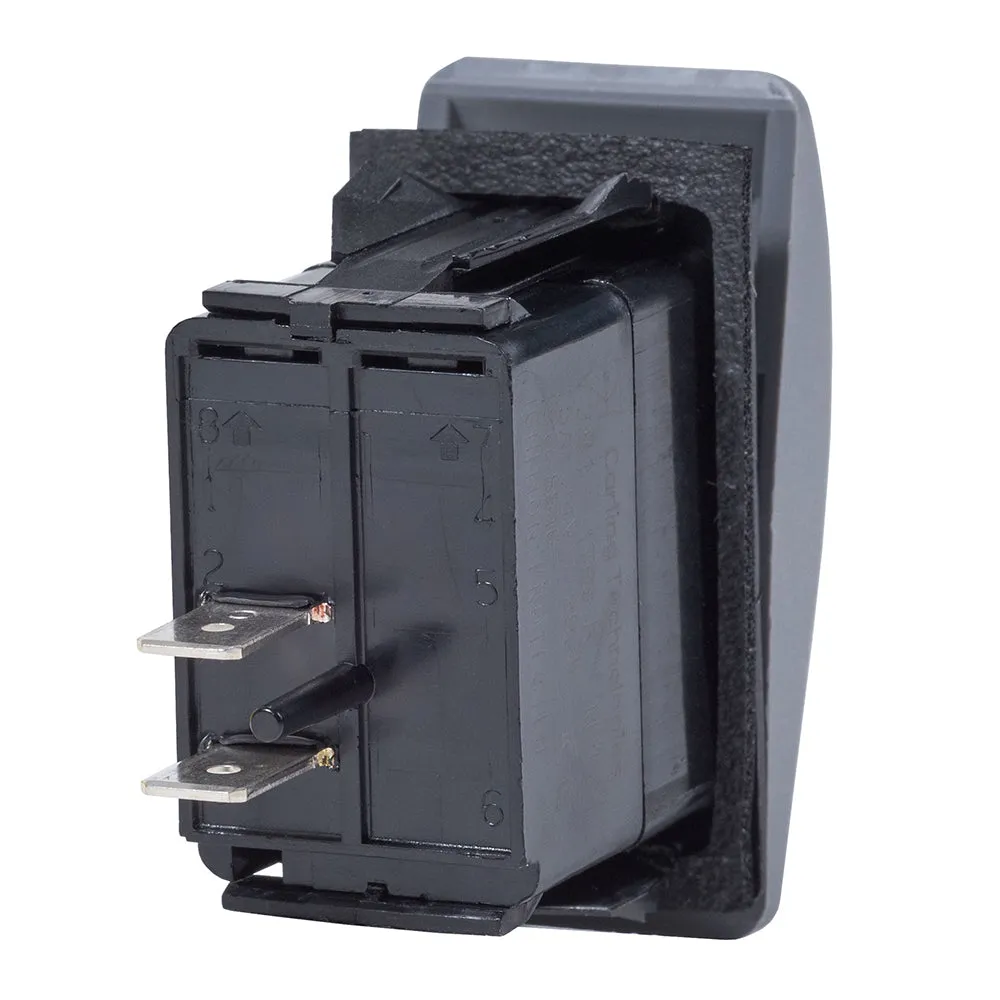

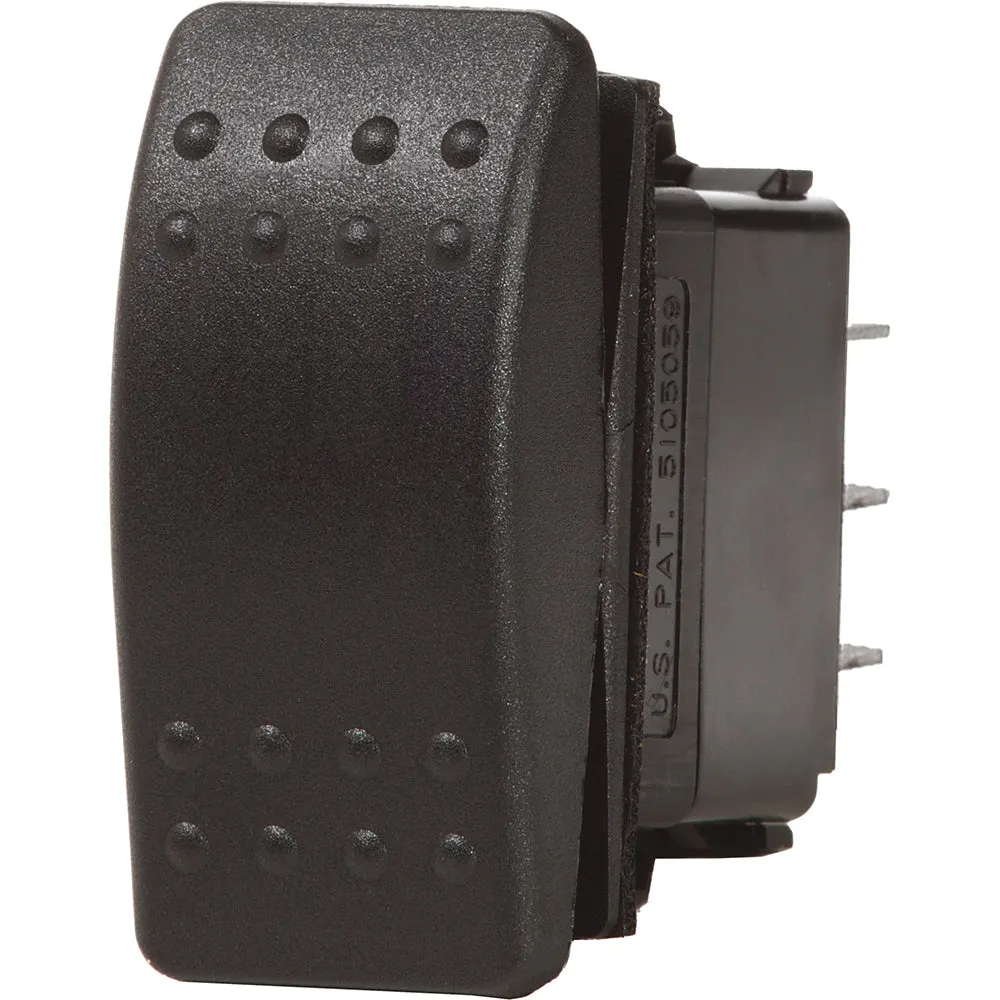

Contura II Switch SPST Black - OFF-(ON)

Vibration, shock, thermoshock, moisture and salt spray resistant
Mounts in Blue Sea Systems Contura Water Resistant Panels and Contura Switch Mounting Panels

Specifications:

• Action: OFF-(ON)

• Pole/Throw: SPST - Single Pole/ Single Throw

• Actuator Color: Black - Contura II

• Common Applications: Horn or Windshield Wipers

• Maximum Amperage: 20A @ 12V / 15A @ 24V

• Amperage Operating Current: 18mA (LED)

• Minimum Operating Temperature: -40° C

• Maximum Operating Temperature: 85° C

• Embedded LEDs: NONE

• Lighting: LED rated 100,000 hours 1/2 half

• Seals: Internal and external gasket panel seal

• Weight: 0.09lb (0.04 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Action: (On)/Off
• Color: Black
• Throw/Pole: SPST
• Box Dimensions: 2"H x 3"W x 4"L WT: 0.2 lbs
• UPC: 632085079307
